Nome da marca: Aiyima
AIYIMA Model: TPA3255
Produto Químico de Alta Preocupação: Nenhum
Potência máxima por canal: Acima de 200 W
Origem: CN (Origem)
Embalagem: Sim
Canais: 6 (5,1)
Certificado: CE
Certificado: FCC
Certificado: KC
Número do modelo: AIYIMA A70 Mono

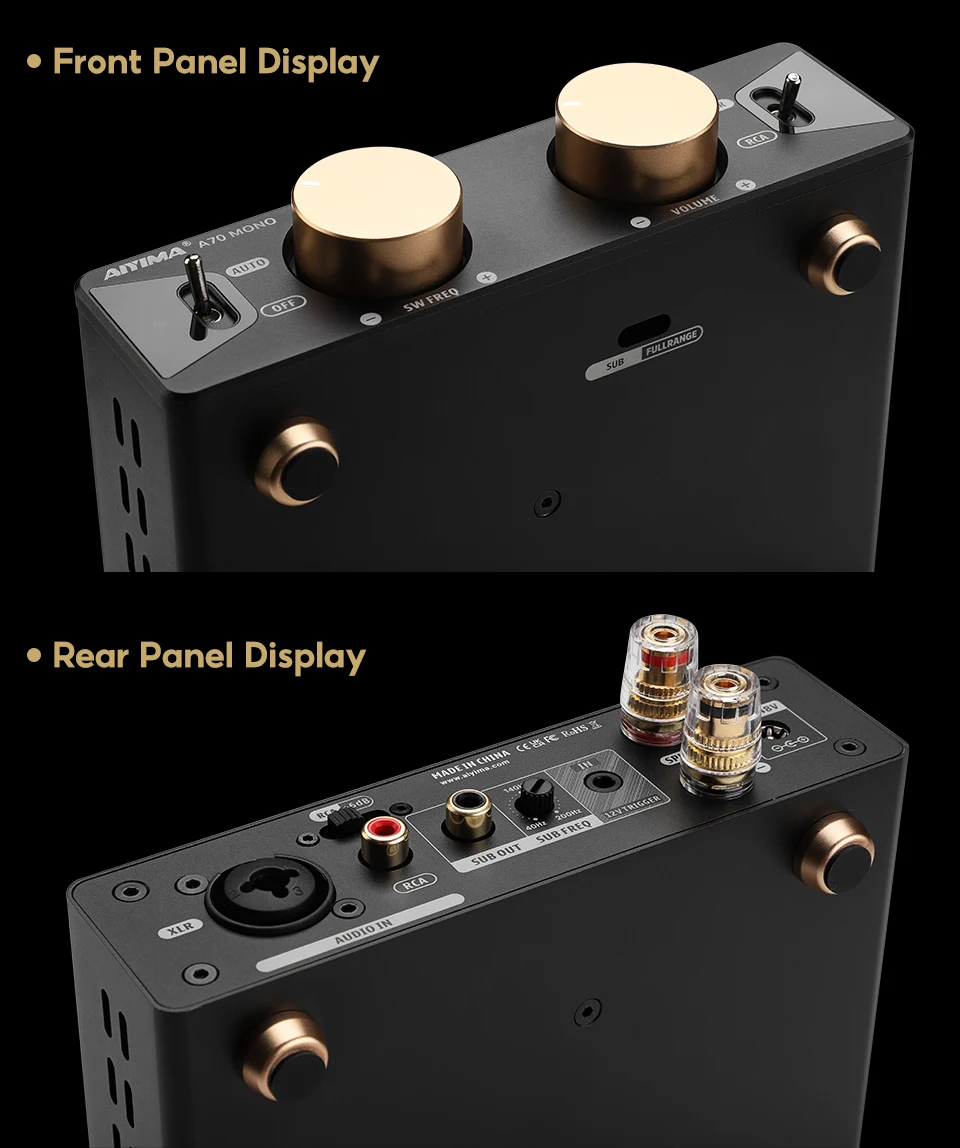

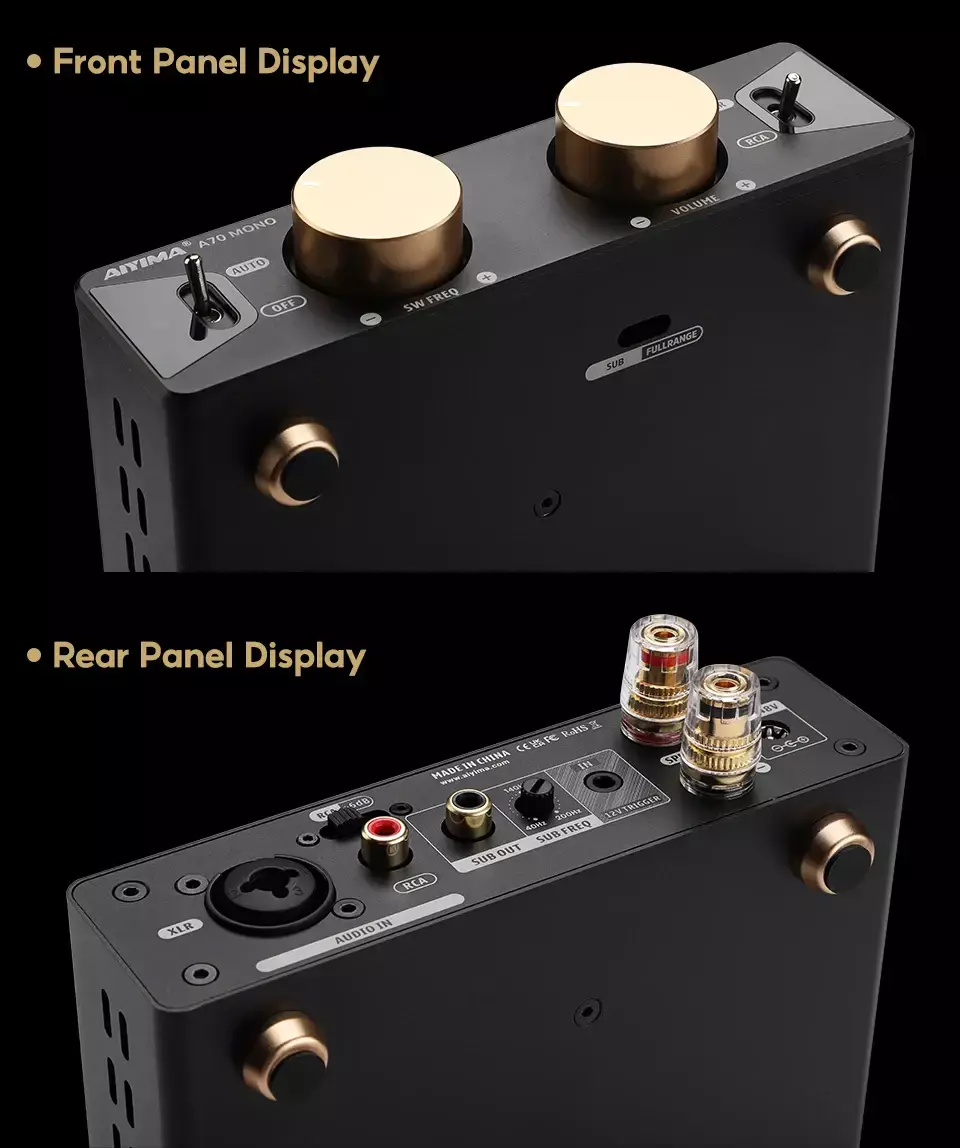

Appearance: It features an all-aluminum body with a meticulous glass bead-blasted finish, giving it a sleek black surface that's smooth to the touch.

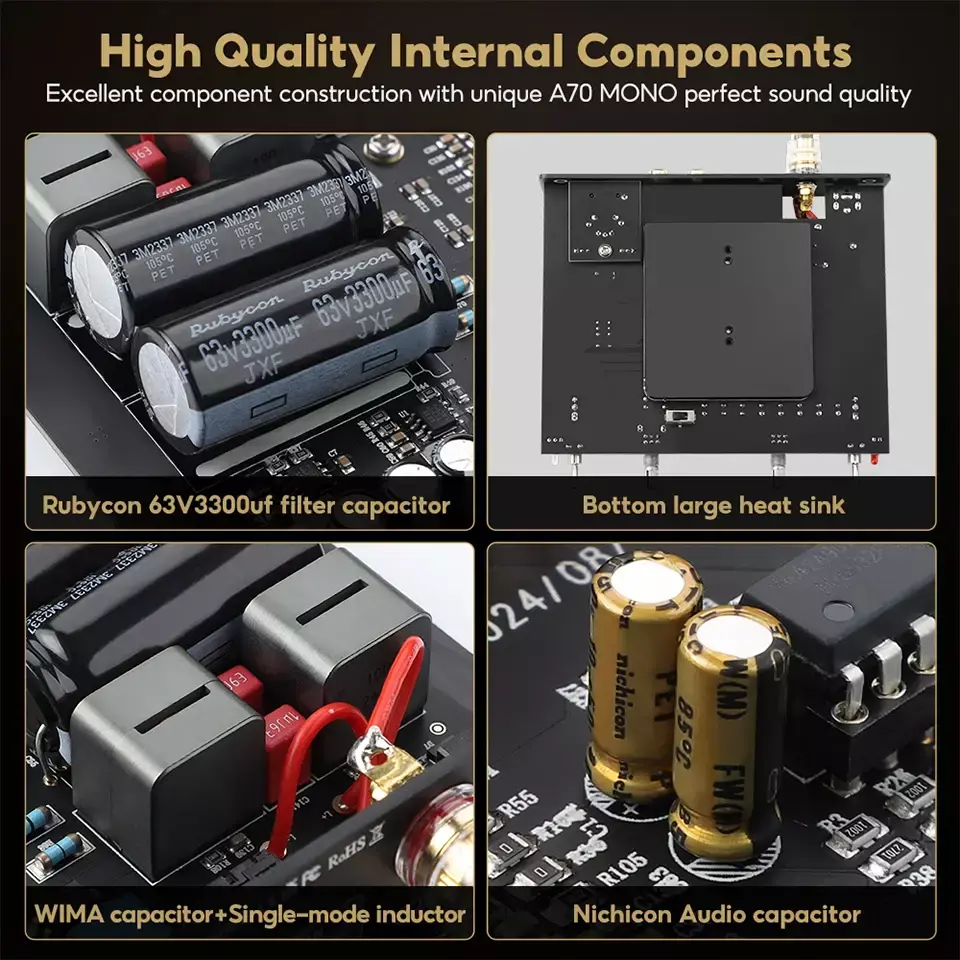

Feature 1: With Japan rubycon63v3300uf filter capacitor, ELNA sound Frequency capacitor, German WIMA capacitor + professional high-power single-mode inductor
Feature 2: single-pass full frequency/bass power + bass signal output
Feature 3: SUB support 40-200hz adjustable, support ultra low pass active bass

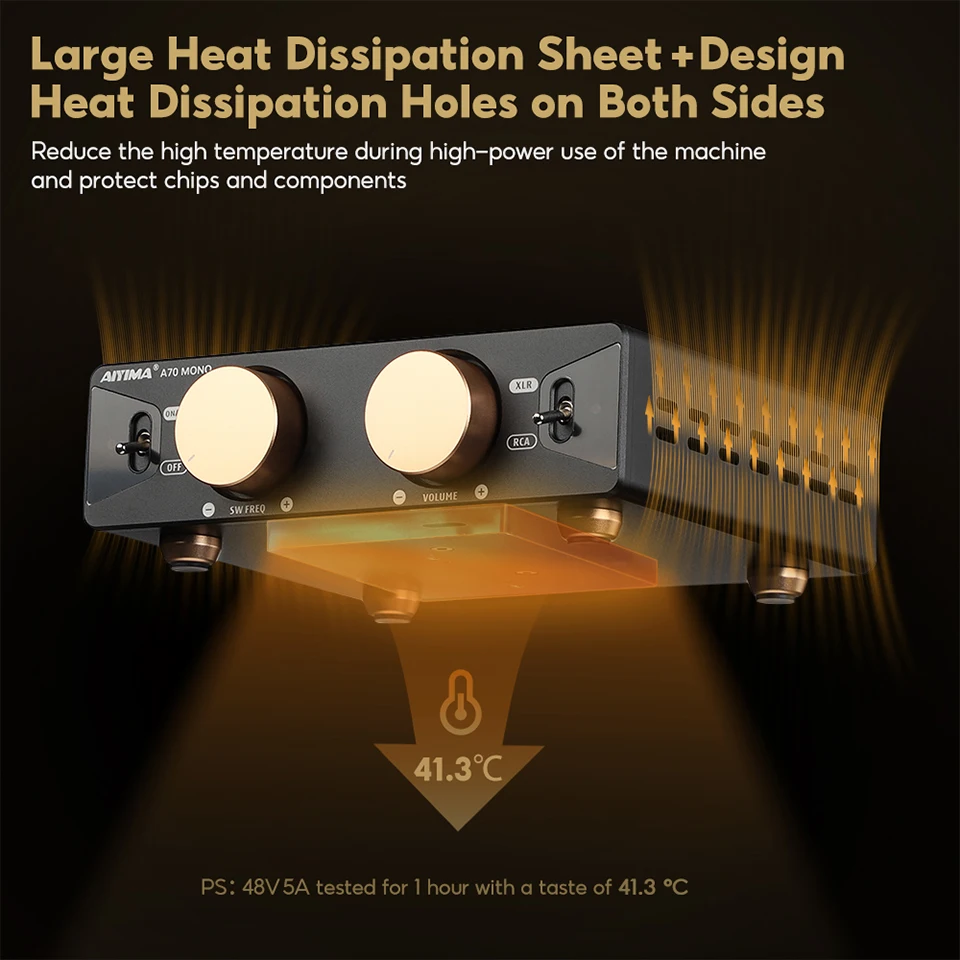

low heat: low heat: 48V5A test for 1 hour temperature of 41.3°
pffb circuit design: This part uses a PFFB circuit, which reduces distortion in the sound, making the audio quality clearer and more authentic.
High power: 48V can reach 300W output
12v trigger: you can simultaneously start the previous 12v trigger output

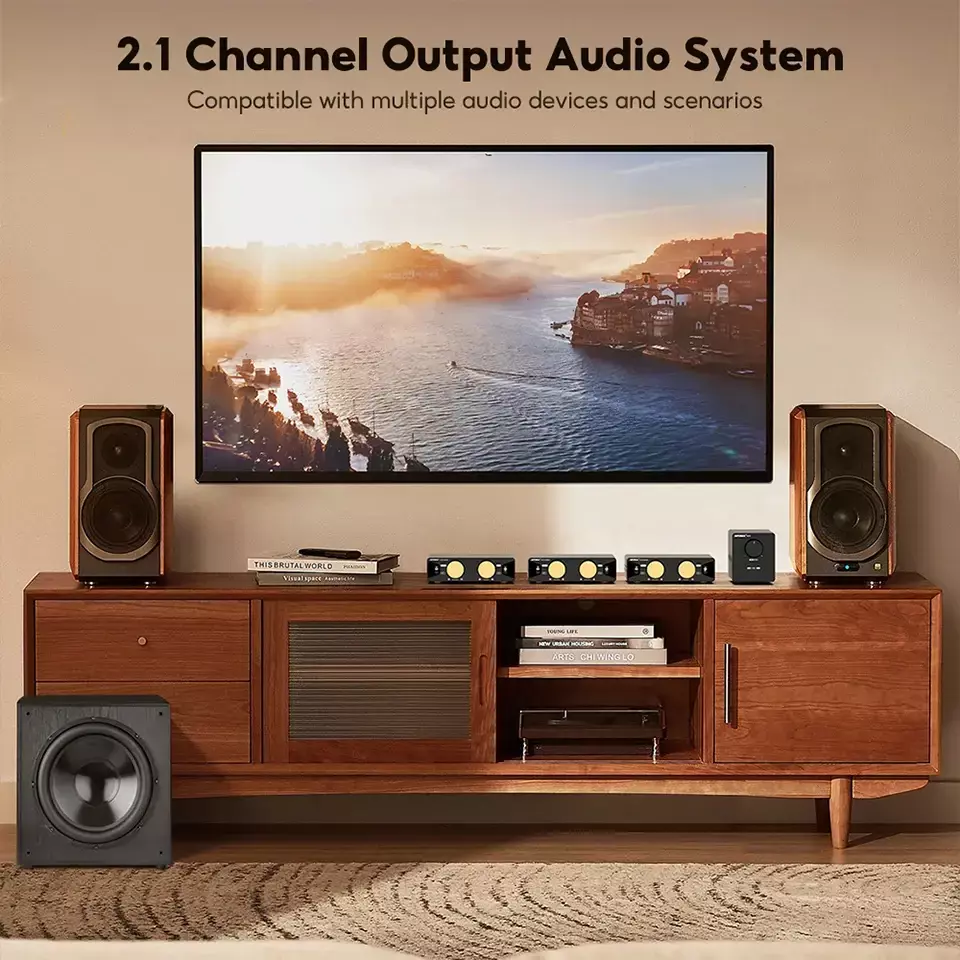

multi-scene: support home theater 2.0/2.1/5.1/7.1. Support for medium power amplifier
Feature:
1. Exceptional Audio Quality: Powered by professional audio components and advanced circuit design, this amplifier delivers crystal-clear and powerful sound, perfect for music enthusiasts and home theater systems.
2. Elegant and Compact Design: The precision-crafted metal shell offers a sleek, durable finish, while the compact size ensures it fits seamlessly into any setup, saving space without compromising on aesthetics.

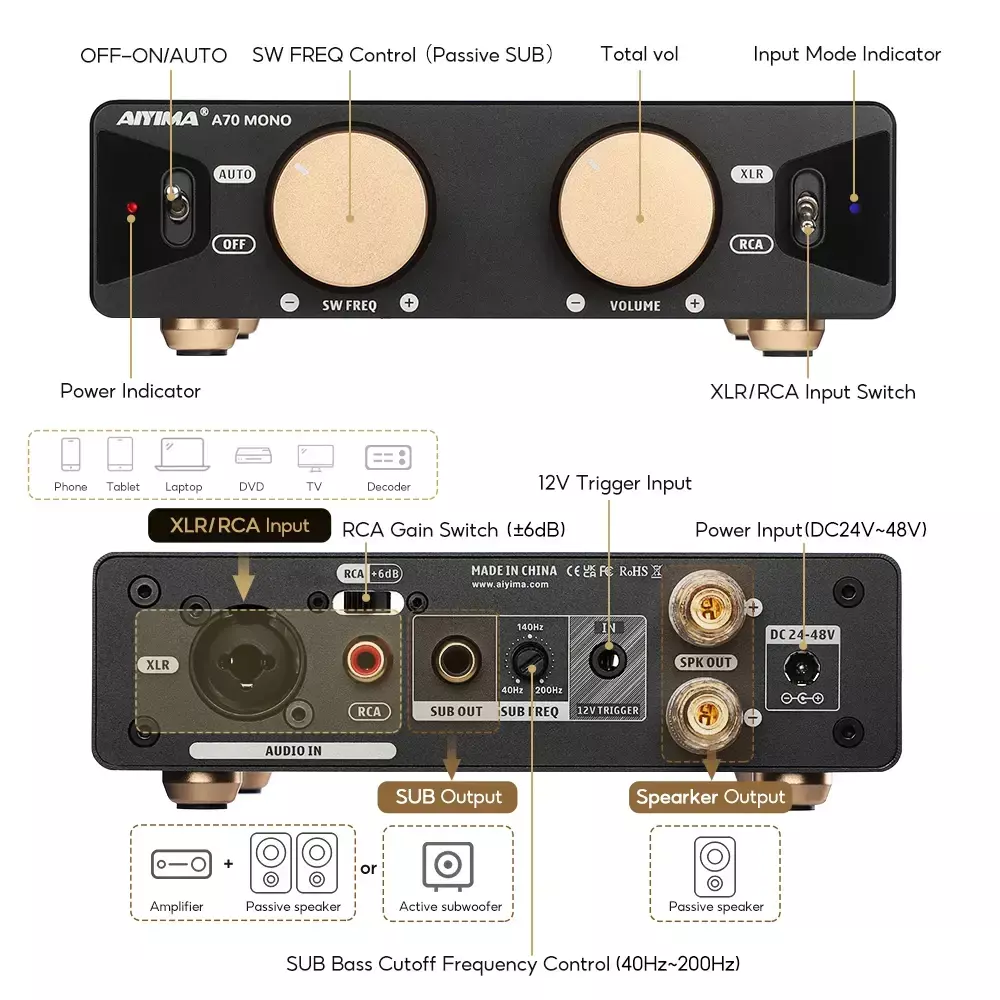

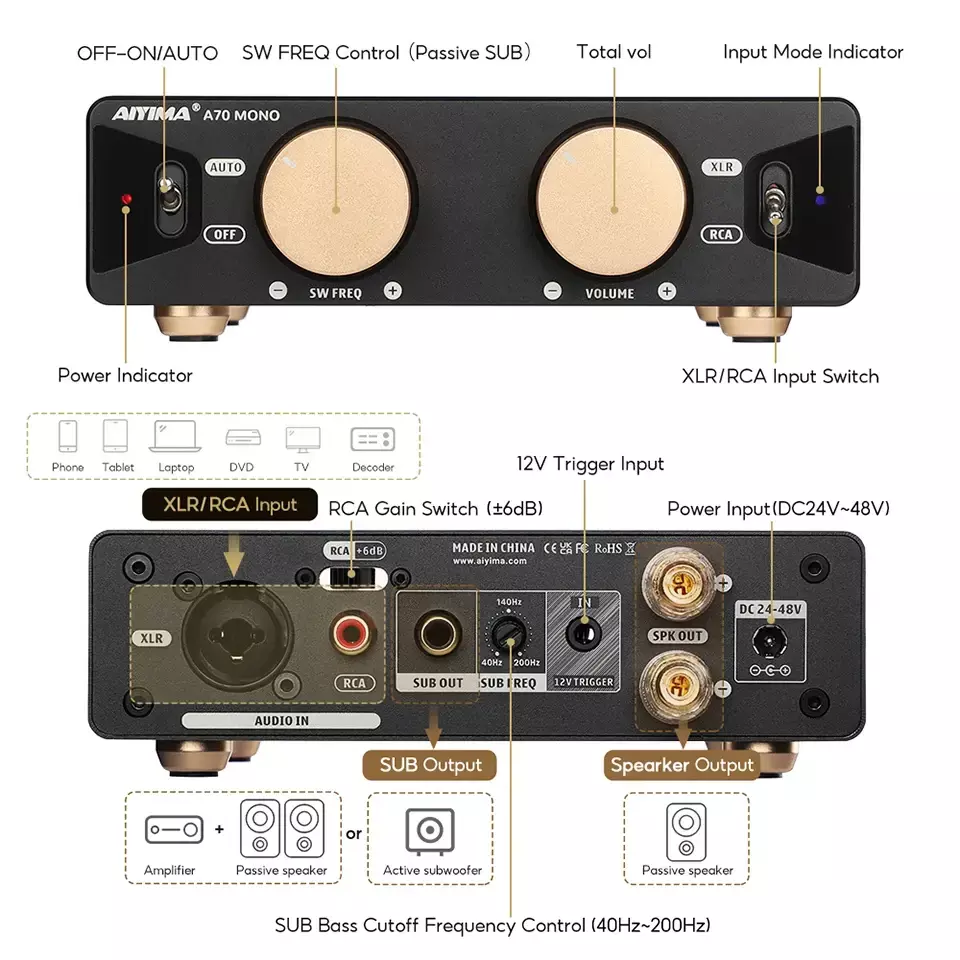

3. Versatile Connectivity: Features multiple audio inputs including RCA, XLR, and a 12V trigger, allowing for easy integration with various audio equipment and streamlining device synchronization.
4. Advanced Class D Amplification: Equipped with TI's TPA3255 chip and PurePath Ultra-HD technology, it delivers up to 600W Mono at 2? with minimal distortion and excellent performance, ensuring robust and dynamic sound output.

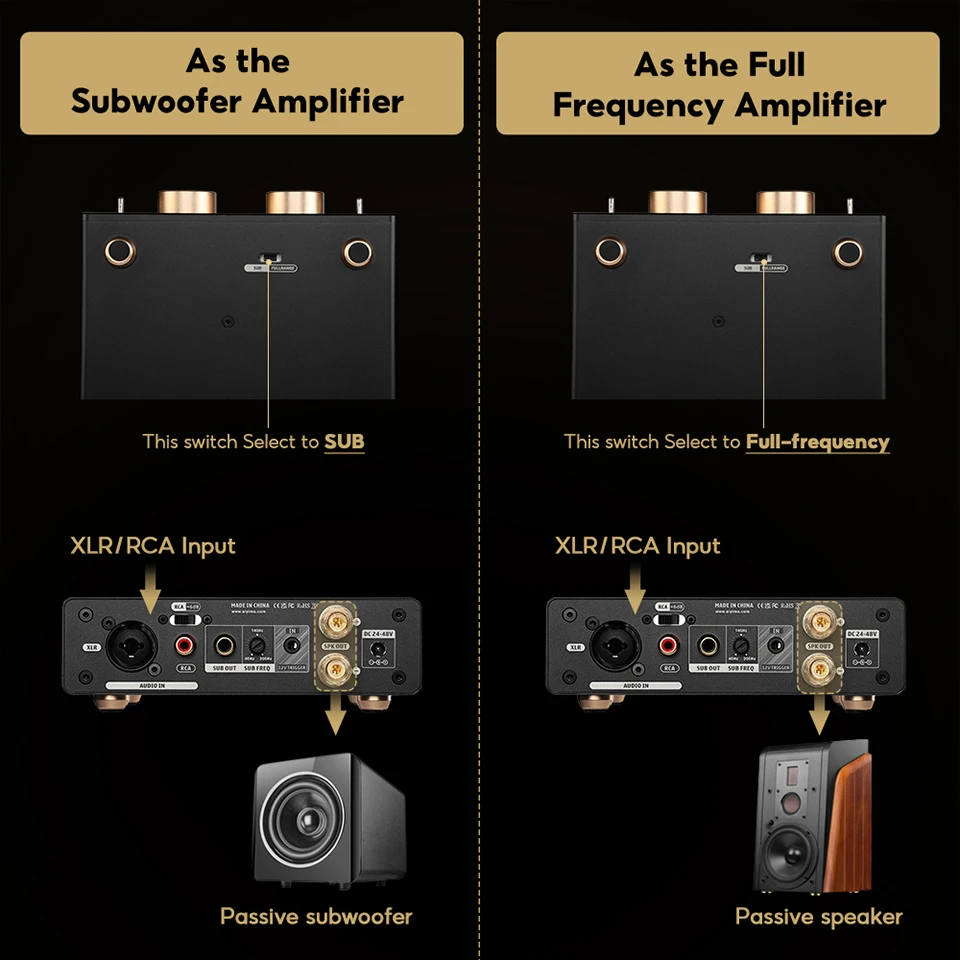

5. Enhanced Functional Features: Includes a 6dB gain boost for RCA inputs, an active subwoofer output with adjustable frequency (40-200Hz), and dual-mode switching for full-range or passive subwoofer output, accommodating diverse audio configurations from mono to 7.1-channel setups.
Parameter:

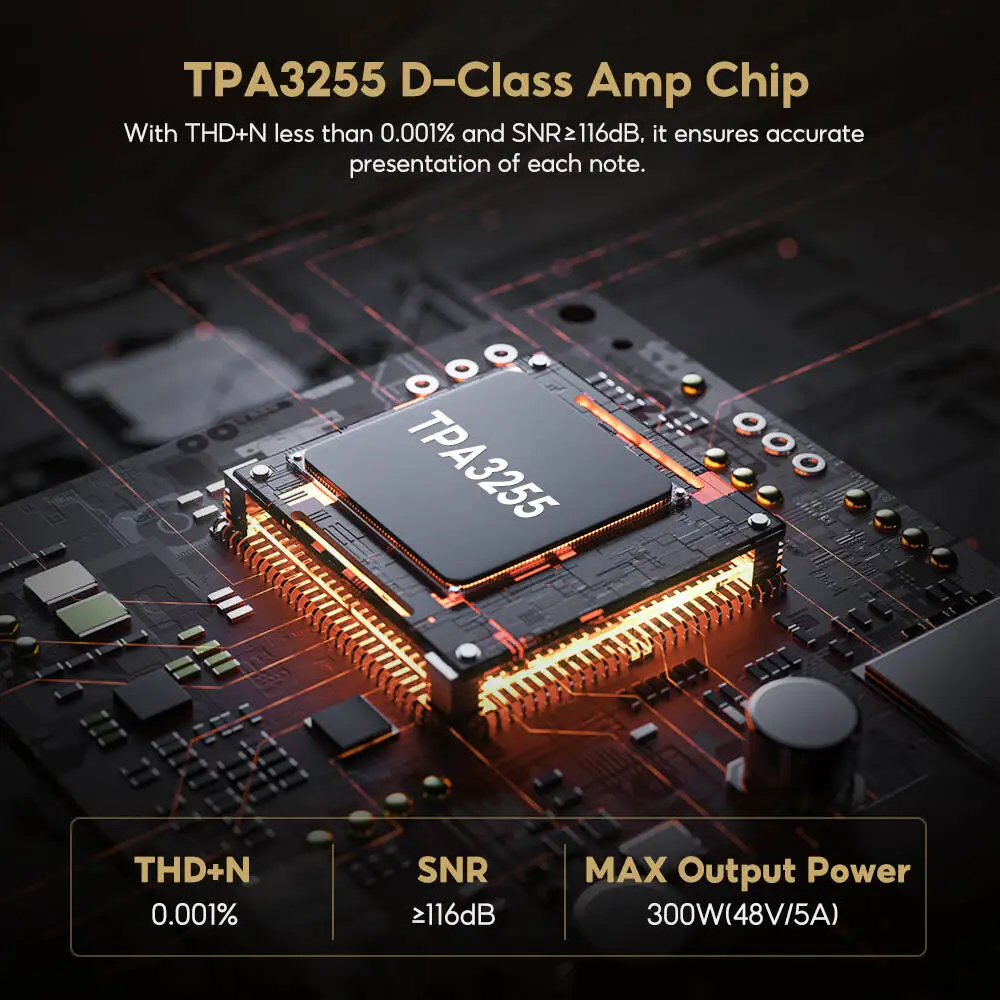

Chipset: TPA3255+NE5532
Replaceable op-amp chips: RT3609SM, OPA2604, OPA2134, LM4562, JRC5532, OP275GSZ, OPA1612 and so on.

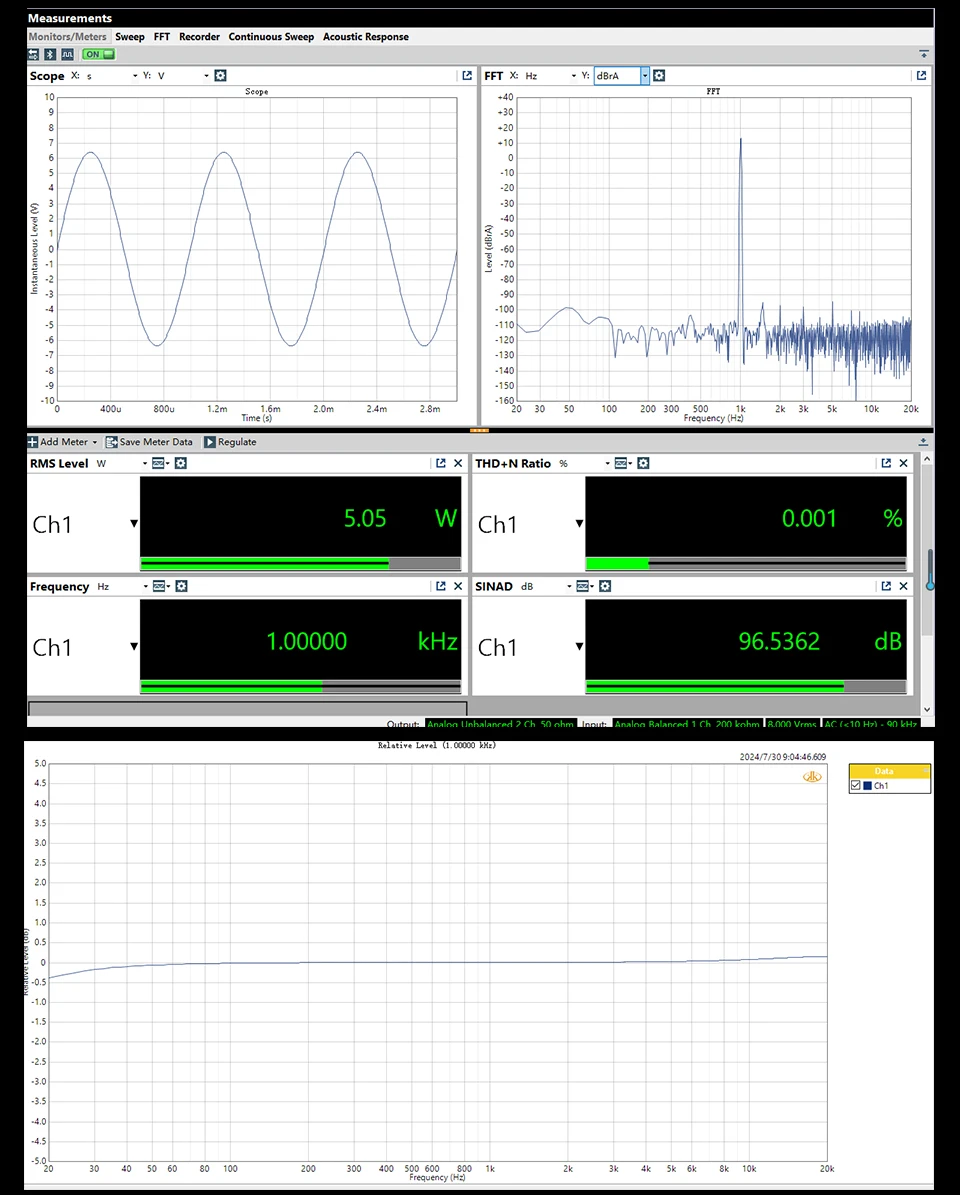

Distortion: 0.001%
xlr/rca SNR: ? 116 dB
xlr/rca SNR: 96 dB
Frequency Response: 20Hz-20KHz (±0.5dB)
RCA input sensitivity: low gain 2Vrms(26 dB)/high gain 1Vrms(32 dB)
XLR input sensitivity:4Vrms(19 dB)
Speaker Impedance:2-8?

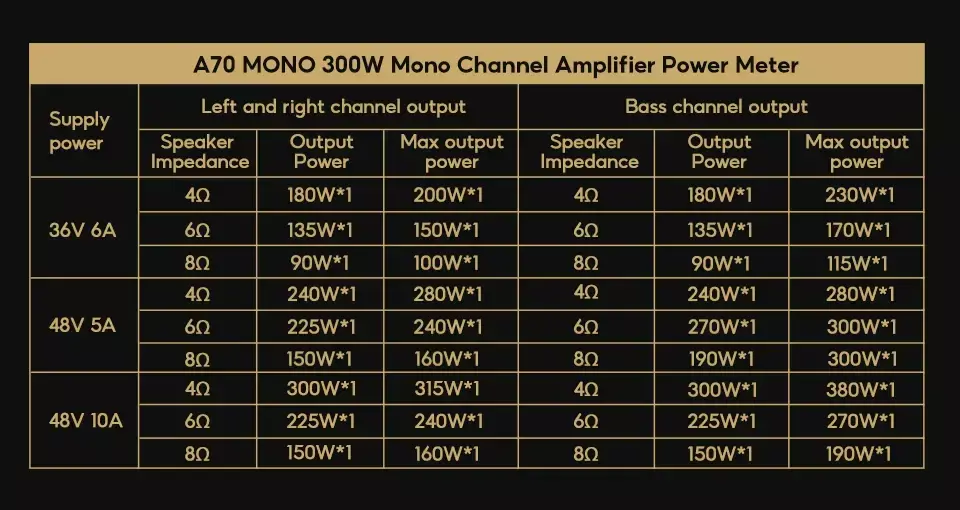

Maximum Output Power: 300W (@4?) 48V5A
Input Mode: RCA+XLR
Supported devices: decoder, bilevel preamp, computer, CD, cell phone, MP3, etc.
SUB output sensitivity: 2V
Output Mode: 1.0 passive speaker/0.1 subwoofer + active low-pass
Working power supply: 24-48V

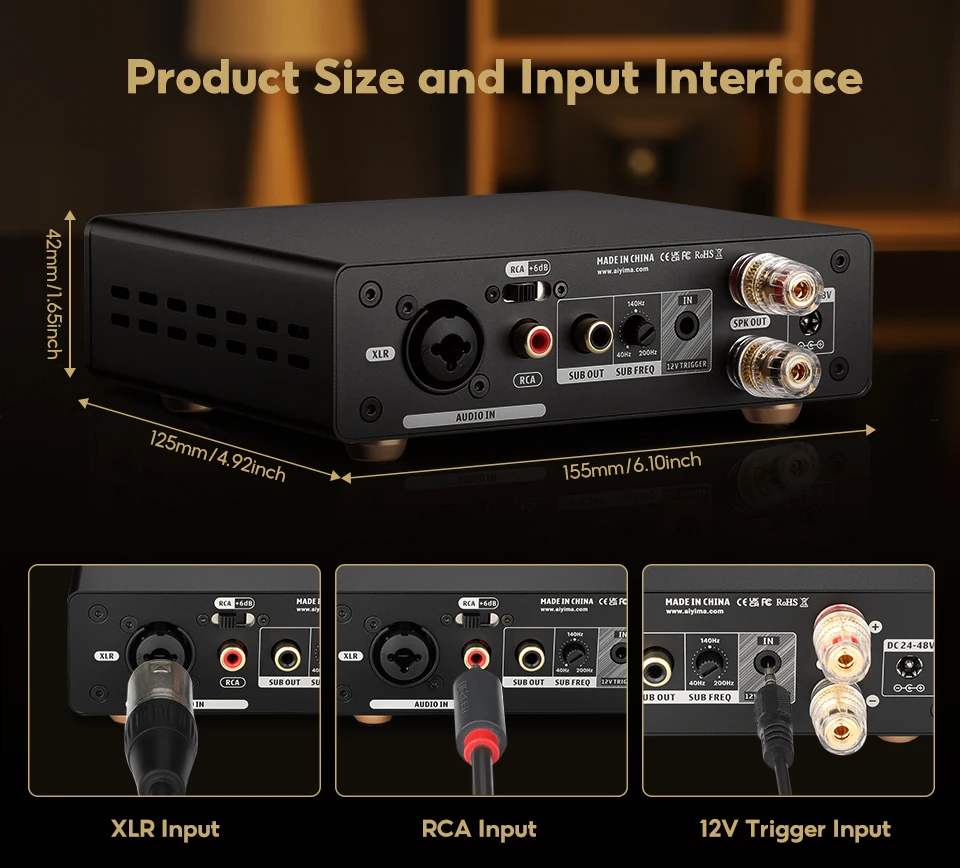

Package Size: 126.5*154.5*42mm
Product net weight:0.9 Kg

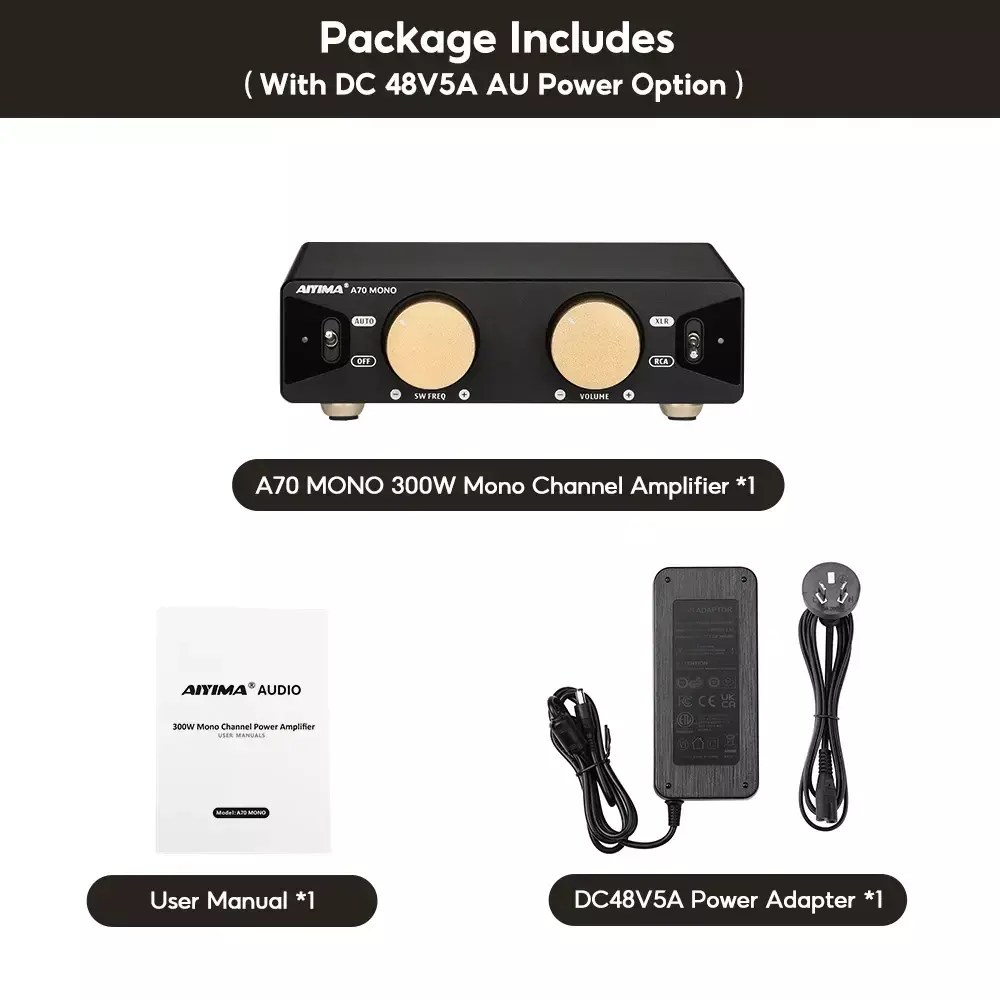

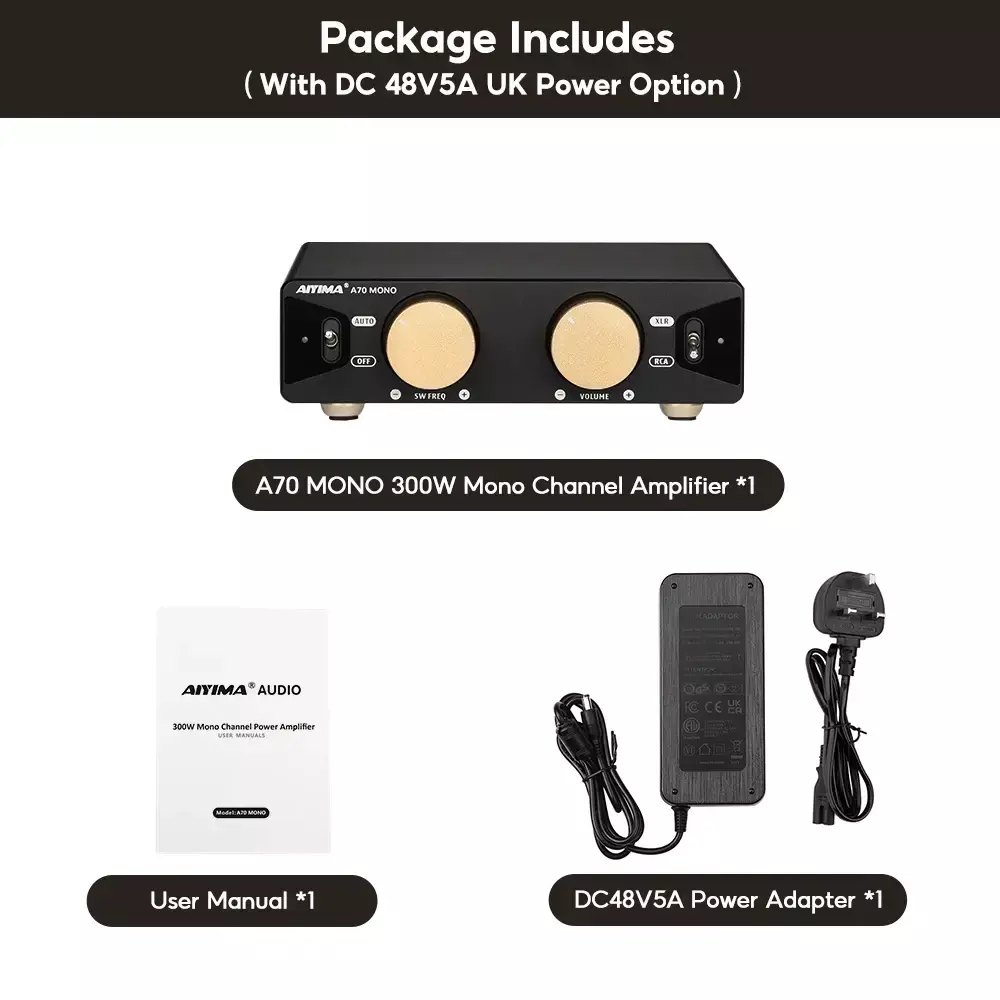

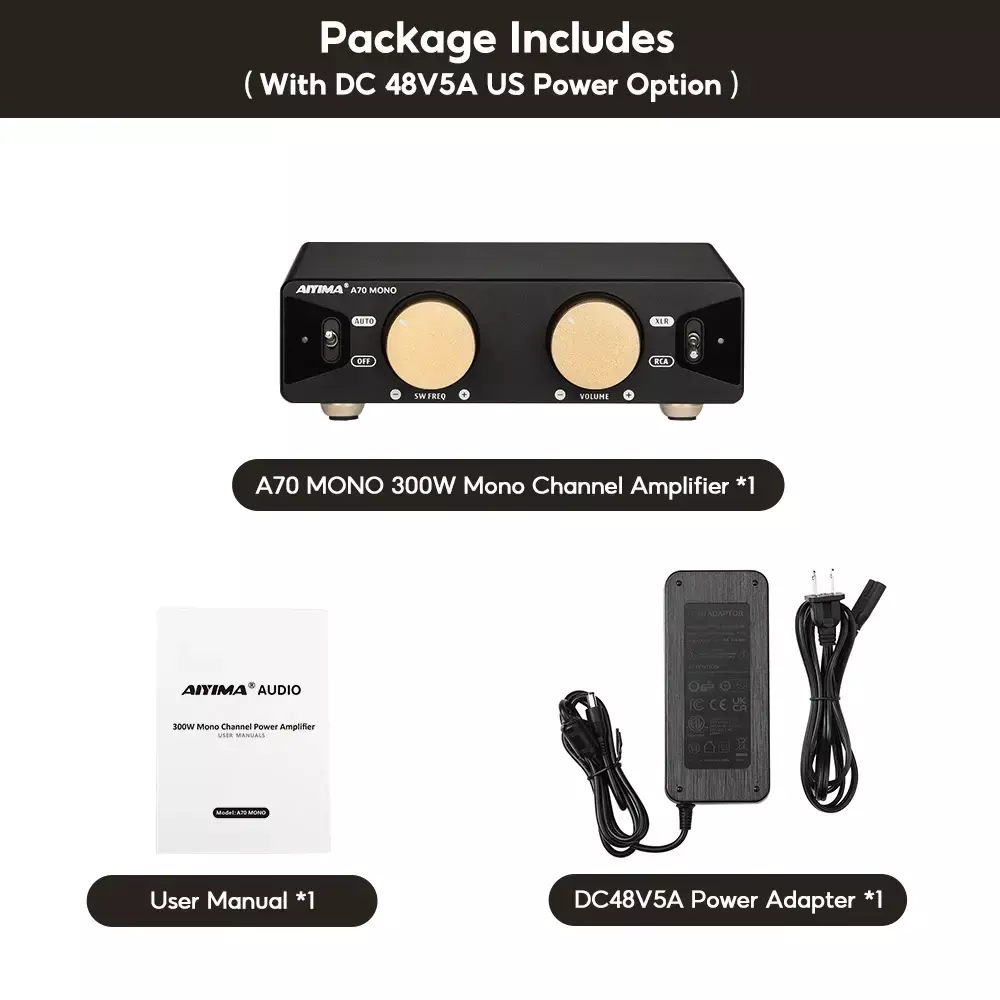

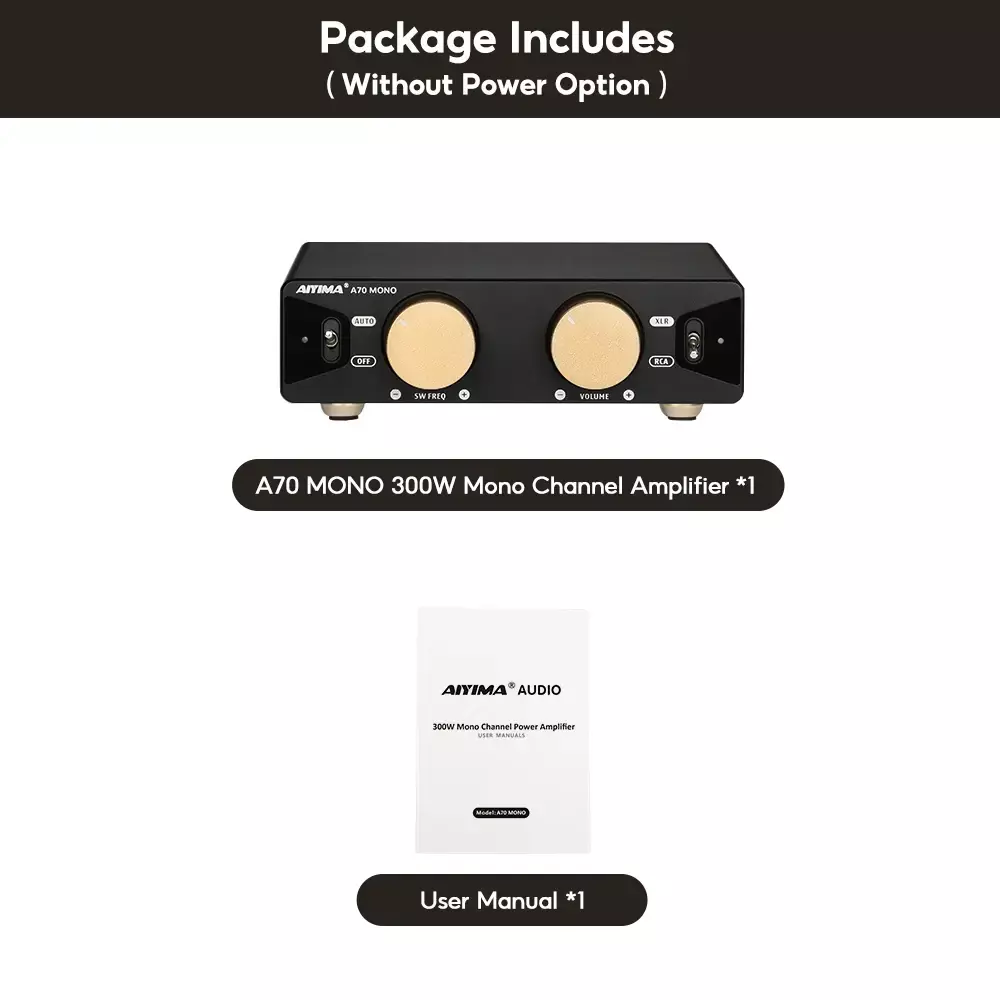

Package include:
A70 mono X1
power supply X1 (it‘s option )
